Mosaic Rt-1 Disc

Ultimate Braking Performance

Disc brakes are not about stopping faster, they are about having confidence in your stopping power, the ease at which your hand can control braking force and reliable performance in any conditions.  We've been big fans of disc brakes and were early adopters of the technology. The RT-1 disc-equipped model is a prime example of how disc brakes can be applied to a metal frame. Increased tire clearance, clean aesthetics of internally routed brake lines, and shifting lines accompany the pure function of disc brakes.

All this added to the particular blend of oversized internally double butted and thin walled straight gauge tubes make a responsive handling characteristic without losing the quality ride titanium frames are known for while keeping the weight as low as possible.  Complemented by full custom geometry and choice of raw etched titanium the RT-1 will truly be unique to each rider.

Included Features

Geometry:                                                                                           Custom

Extra Features at no charge

Stock size

Features at additional charge

Tubeset:          3A/2.5V blend of interanly butted and thing wall titanium

-

Fork:                                          Enve Road 2.0 disc Flatmount 1.25" taper

-

Headset:                                                                                     Chris King i8

Choice of Color

Brake mount:                                                          Flatmount fron and rear

Brake routing:                                                                     External housing

Internal housing

Axle:                                                       100x12mm front, 142x12mm Rear

Shifting:                                                          Mechanical (external routing)

Di2, EPS, E Tap (Internal routing)

Bottom Bracket:                                                    Threaded English 68mm

PF30 68mm

Seatpost:                                                                                            30.9mm

27.2mm, 31.6mm, ISM

Front Derailleur Mount:                                                                 Clamp on

Braze on

H20 Mounts:                                                   Two, downtube and seattube

-

Max Tire Size                                                                                            30c

-

Finish:                            Choice of Raw Etched and Stainless Headbadge

-

Mosaic Titanium Topper

3rd on Downtube

Paint

RT-1 Stock Sizing

Frame Size

48cm

50cm

52cm

54cm

55cm

56cm

58cm

60cm

62cm

Head Tube Angle

71 deg

71 deg

72.5 deg

72.5 deg

72.5 deg

73 deg

73 deg

73 deg

73 deg

Seat Tube Angle

74.5 deg

74 deg

74 deg

735. deg

73 deg

73 deg

73 deg

72.5mm

72mm

ST Length C-T

480mm

500mm

520mm

540mm

550mm

560mm

580mm

600mm

620mm

TT Length eff

515mm

525mm

535mm

545mm

555mm

565mm

580mm

595mm

605mm

HT Length

105mm

120mm

130mm

145mm

155mm

165mm

175mm

190mm

210mm

Chainstay Length

408mm

408mm

410mm

410mm

410mm

410mm

412mm

412mm

415mm

Wheelbase

977mm

983mm

977mm

982mm

982mm

992mm

1010mm

1019mm

1026

Standover Height

734mm

751mm

771mm

787mm

796mm

807mm

821mm

837mm

856mm

Trail

63.5mm

63.5mm

61.5mm

61.5mm

61.5mm

58.4mm

58.4mm

58.4mm

58.4mm

BB Drop

72mm

72mm

70mm

70mm

70mm

70mm

70mm

70mm

70mm

Stack

512mm

526mm

542mm

556mm

566mm

577mm

587mm

601mm

620mm

379mm

380mm

371mm

382mm

372mm

404mm

387mm

401

406mm

Reach

Internal Cable Routing

Oversized Tubing

Responsive Handling

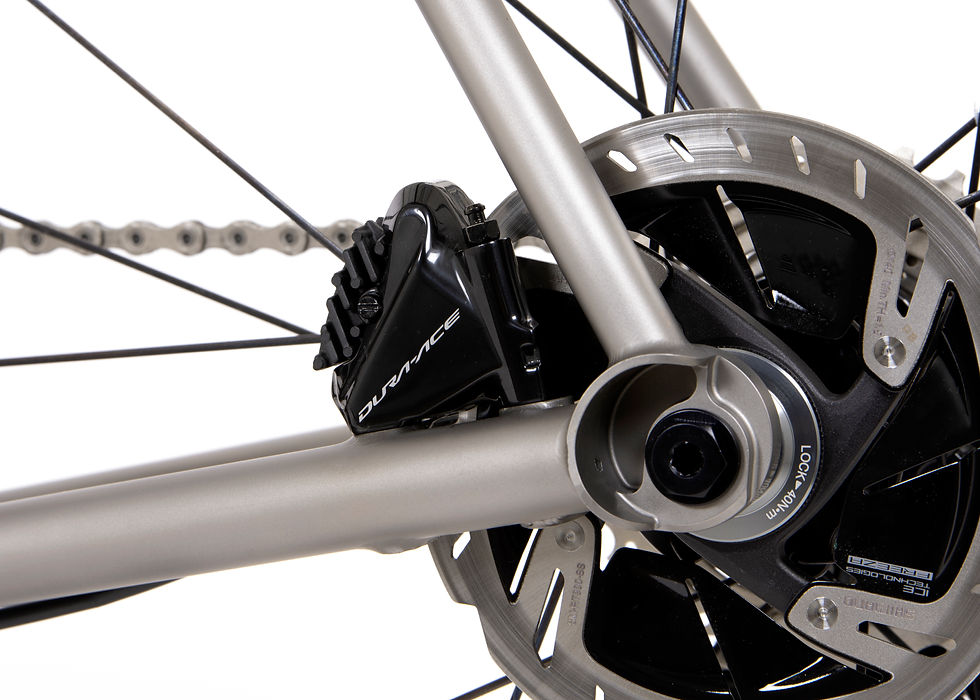

Flat mount disc brake
